HP 41cv with USB power bank

Postby Guilherme Porto » Sun Nov 20, 2022 1:55 pm

Dear all,
Here is my contribution to the forum.
Hope my friends do not hate me because I have modified my HP 41cv.
The point is , I bought it severely corroded by leaking batteries and had nothing to loose.

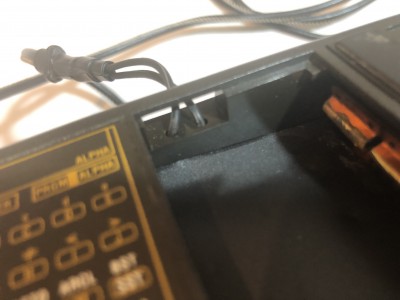

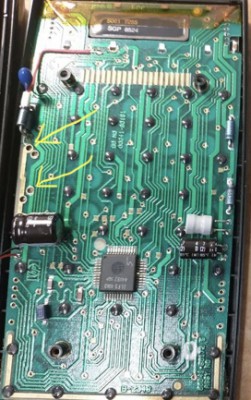

Therefore I took the risk and did soldering an USB cable directly to the board near the regular charger plugs in.
And voilà: I have experienced that great feeling: it is working again , and updated to modern times.
The positive: becomes independent to N cells and still pretty reversible.
The negative: the extra load of a power bank. But I think it is a small price to pay considering pros and cons.
Attachments
Last edited by Guilherme Porto on Fri Dec 02, 2022 1:39 am, edited 1 time in total.
Guilherme Porto
.
.

Posts: 1
Joined: Sun Nov 20, 2022 1:19 pm

Re: HP 41cv with USB power bank

Postby Garth » Sun Nov 20, 2022 4:53 pm

Welcome.

We're always glad for anything that keeps these calcs working.

Note that you can buy brand-new flex-circuit replacements for your corroded one. See https://www.clonix41.org/Maintenance/IO ... _Block.htm . There's a video showing how to install the replacement, at https://www.youtube.com/watch?v=jUTAZSEn-H8 . There's a forum topic at https://hpmuseum.org/forum/thread-15742.html with updates and information on fakes.
Garth
Moderator
Moderator

Posts: 277
Joined: Tue Jan 20, 2009 1:31 am

Re: HP 41cv with USB power bank

Postby BillBee » Mon Nov 21, 2022 12:27 pm

You might also try using conductive copper tape to "re-coat" the connection.

Thanks for sharing your repair!
Bill
BillBee
.....
.....

Posts: 16
Joined: Tue Apr 20, 2021 2:06 pm

Re: HP 41cv with USB power bank

Postby rprosperi » Mon Nov 21, 2022 1:13 pm

BillBee wrote:You might also try using conductive copper tape to "re-coat" the connection.

Bill


Can you share a link with an appropriate type of tape, I have a candidate to try this on?

Thanks.
rprosperi
.........
.........

Posts: 75
Joined: Sat Apr 11, 2015 1:03 pm

Re: HP 41cv with USB power bank

Postby BillBee » Mon Nov 21, 2022 2:28 pm

BillBee
.....
.....

Posts: 16
Joined: Tue Apr 20, 2021 2:06 pm

Re: HP 41cv with USB power bank

Postby rprosperi » Wed Nov 23, 2022 1:40 pm

BillBee wrote:Here you go B!

https://www.amazon.com/Zehhe-Copper-Foi ... r=8-3&th=1

Hope it helps,
B


It will, thanks very much Bill!
rprosperi
.........
.........

Posts: 75
Joined: Sat Apr 11, 2015 1:03 pm
